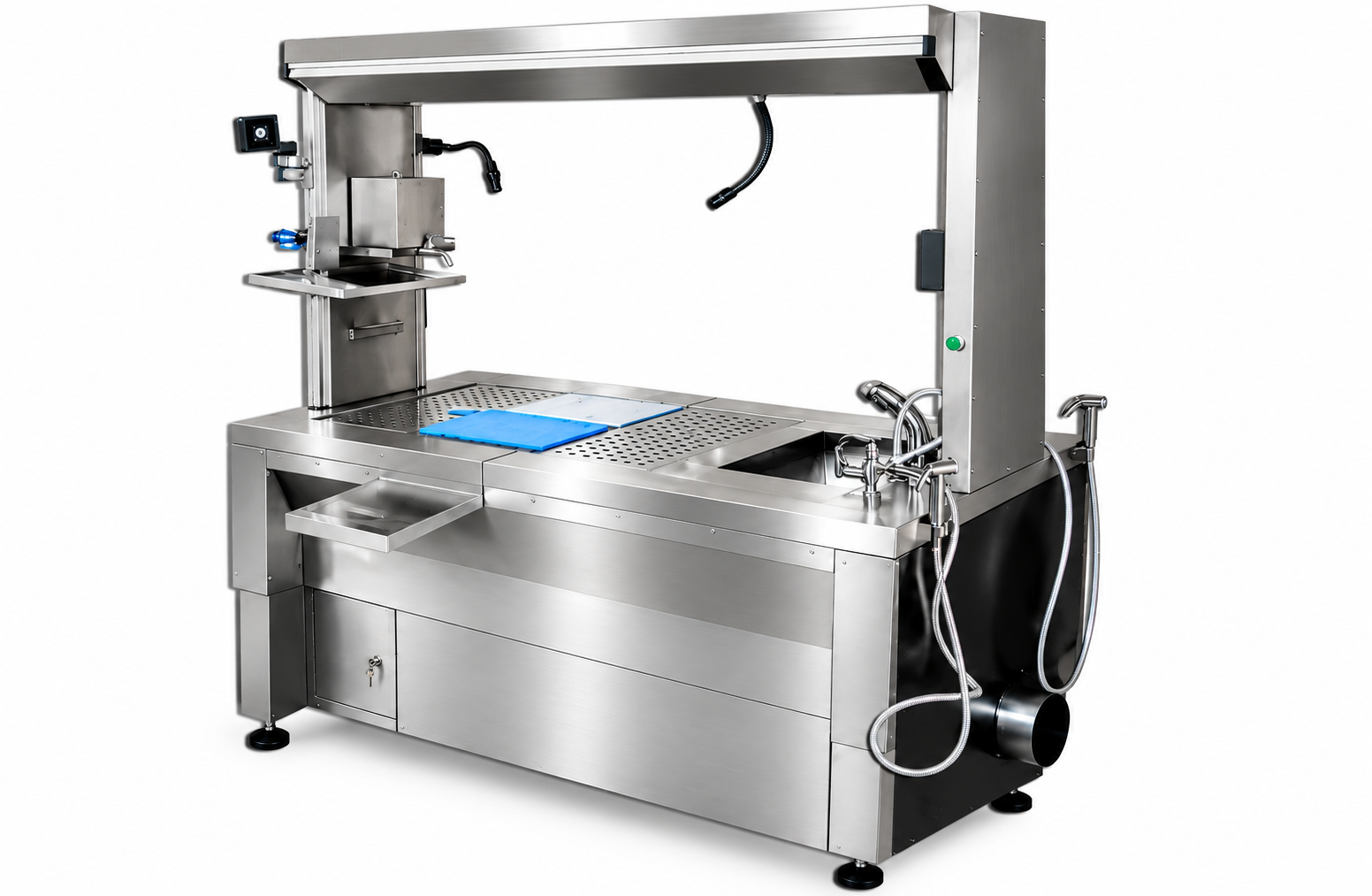

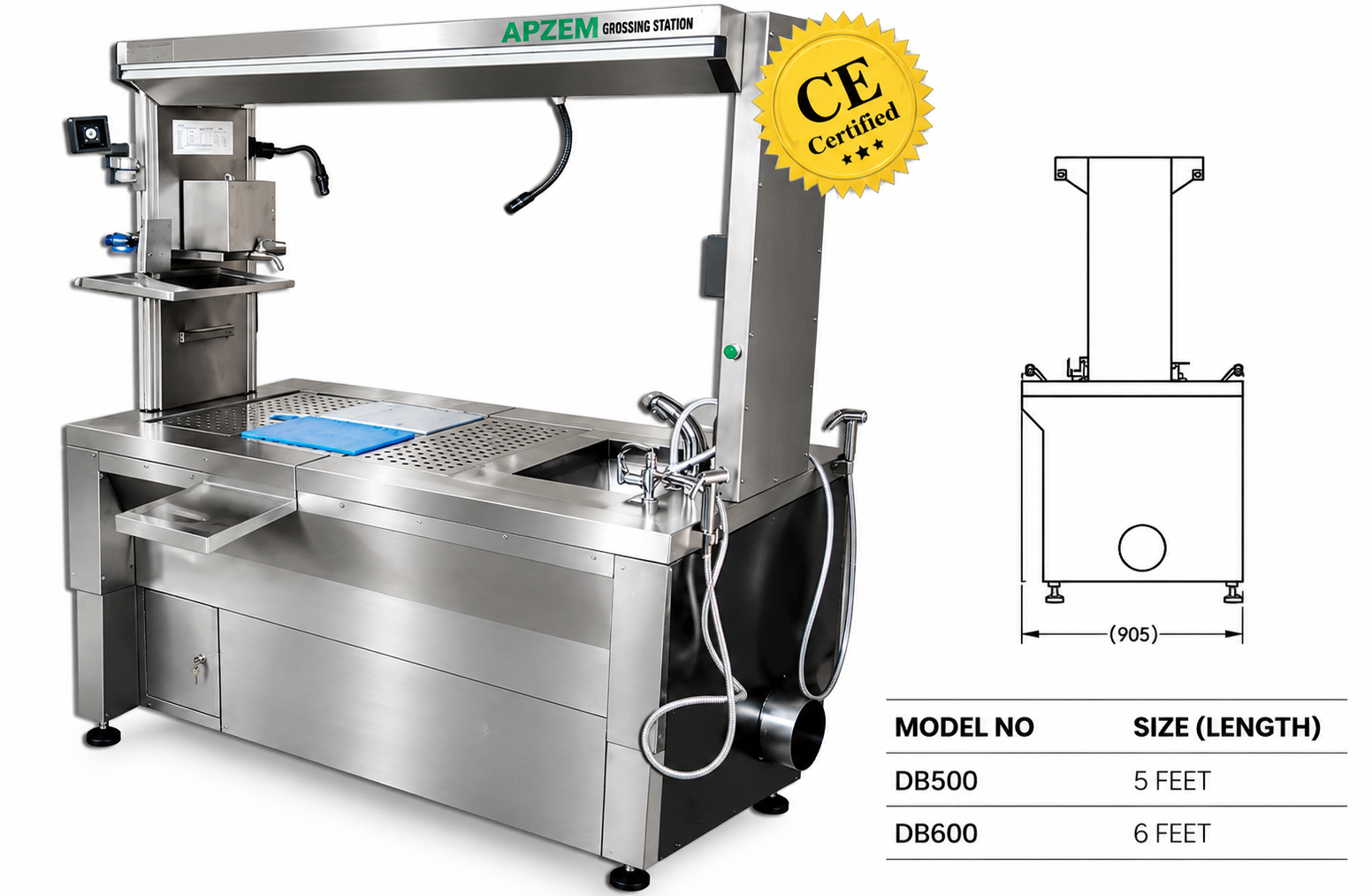

Technical Specifications – PROFESSIONAL DOWNDRAFT
GROSSING STATION
| Specification |
Details |
| Model |
DB500 |
| MOC (Material of Construction) |
SS304 (Standard) / SS316 (Optional) |
| Ventilation |
Downdraft |
| Dimension |
1650 mm (Length) × 905 mm (Width) × 1885 mm (Height) |
| Work Surface Height |
900 mm from the ground |
| Sink |
790 mm × 660 mm × 310 mm (Depth) |
| Filters |
Water-washable polyester prefilters |
| Electrical |
220–240 VAC, 50/60 Hz, 1 Phase; 110 V supplied on request |
| Plumbing |
1/2″ industrial-grade flexible hose supplied for hot and cold water connections |
| Waste Disposal |
1 1/2″ drain hose for waste disposal |
| Waste Disposal Unit |
0.55 HP high-capacity waste disposal unit |
| Exhaust Air Capacity |
1800 CMH |
| Perforated Working Area |
800 mm (Length) × 750 mm (Width) |
| Exhaust Duct Diameter |
200 mm |
