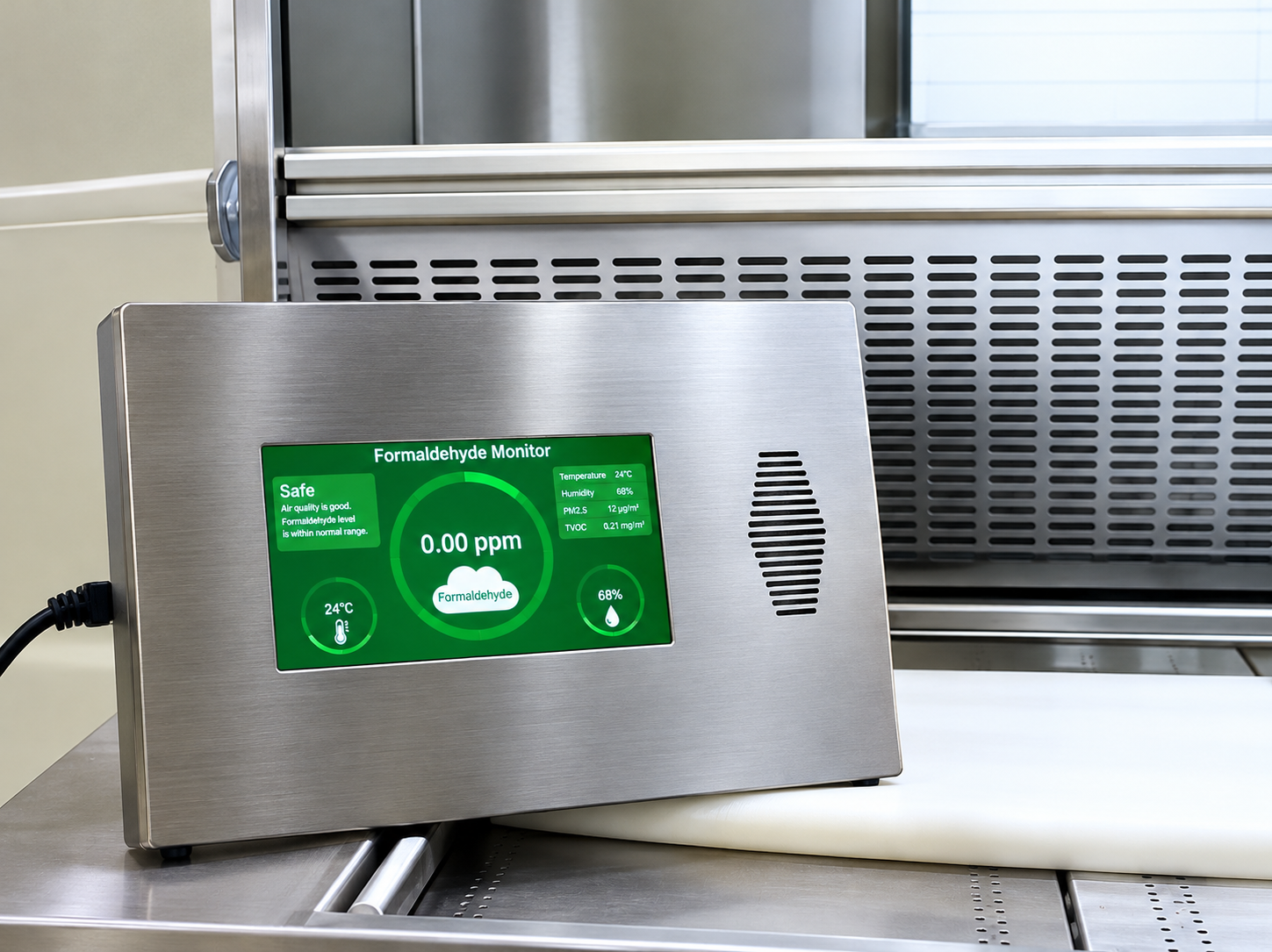

Formaldehyde Monitor

Formaldehyde Monitor is a portable desktop
and wall mountable instrument that measures
the realtime formaldehyde concentration
in air. This monitor displays the real-time
value of formaldehyde concentration in ppm,
temperature ans relative humidity.It has built-in
storage for continuous data logging and Wi-Fi
connectivity for easy access of data log.

SHA Regulations The Occupational
Safety and Health Administration
demands the monitoring of
Formaldehyde vapor concentration
in work space and laboratory where
these chemicals are being used.
OSHA has defined the Permissible
Exposure Limit (PEL) and also
requires the Laboratory to keep
records of the exposure limit such
that remedial action can be taken
when the exposure limit exceeds.

Category:

Technical Specifications – Formaldehyde (HCHO) Gas Detector

Parameter Specification
Gas Detection Formaldehyde (HCHO) in Air
Detection Range 0.00 to 5.00 ppm
Resolution 0.01 ppm
Accuracy ±4%
Temperature Range 0°C to 50°C
Temperature Resolution 1°C
Temperature Accuracy ±1°C
Humidity Range 10% to 90% RH
Humidity Resolution 1% RH
Humidity Accuracy ±4% RH
Dimensions 14.5 × 9 × 3 inches (368 × 229 × 76 mm)
Response Time Less than 30 seconds
Weight 4 kg
Power Supply 230 V AC, 50/60 Hz
Display 7-inch HD Display
Display Unit PPM
Memory Built-in storage for 1 million readings
Operation Mode Continuous
Sensor Type Electrochemical Sensor
Communication Mode Wi-Fi
Maximum Detection Value 5 ppm
Alert Interface Visual alert through color change

Applications

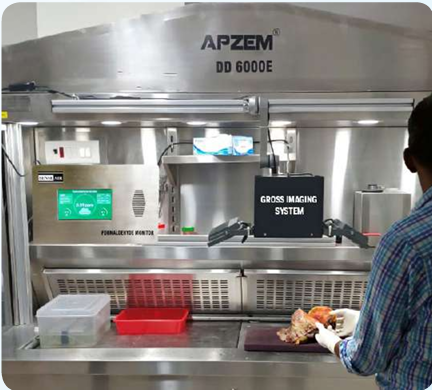

The formaldehyde monitor is used in a wide
variety of applications such as

  • Medical Pathology lab
  • Autopsy

Unique Features

  • HD display

7 Inch HD screen with intuitive, rich graphical
display of formaldehyde concentration , tem
perature, humidity, safety alert message
and formaldehyde concentration vs health
effects table.

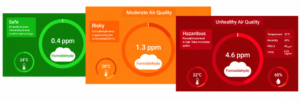

Air Quality Monitoring Dashboard
