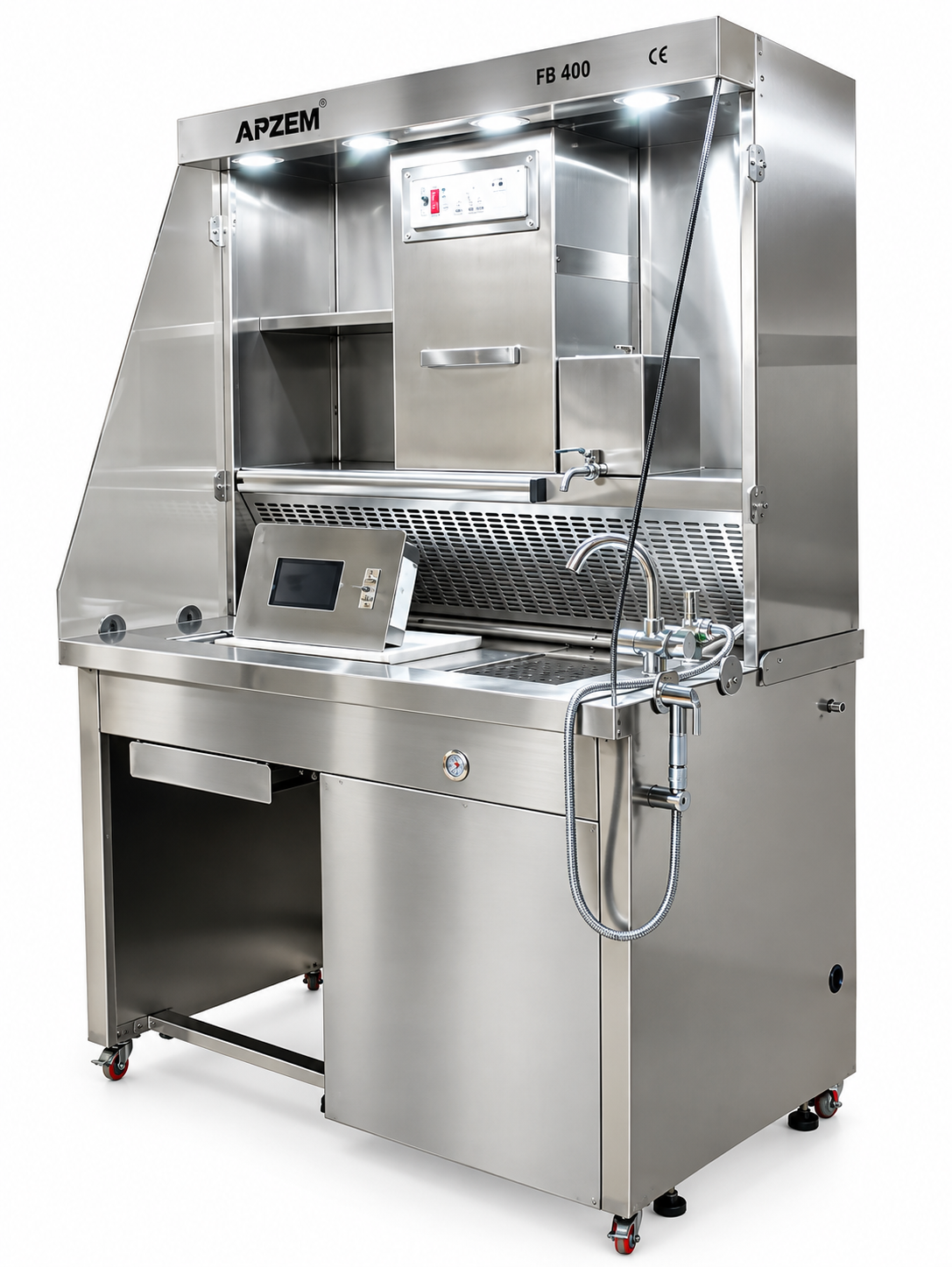

Technical Specifications – MINI BACKDRAFT
GROSSING STATION (FB SERIES)
| Specification | Details |
|---|---|
| Model | FB400 |
| MOC (Material of Construction) | SS304 (Standard) / SS316 (Optional) |
| Ventilation | Backdraft |
| Dimension | 1275 mm (Length) × 800 mm (Width) × 1960 mm (Height) |
| Work Surface | 900 mm height |
| Sink | 380 mm (Length) × 350 mm (Width) × 180 mm (Depth) |
| Filters | Water-washable polyester pre-filters |
| Electrical | 220–240 VAC, 50/60 Hz, 1 Phase; 110 V supplied on request |
| Plumbing – Water Connection | 1/2″ industrial-grade flexible hose supplied for water connection |
| Plumbing – Drain Connection | 1 1/2″ drain hose (waste disposal) |
| Waste Disposal | Optional |
| Waste Disposal Unit | 0.55 HP high-capacity waste disposal unit |
| Exhaust Air Capacity | 930 CMH |
| Perforated Working Area | 880 mm (Length) × 495 mm (Width) |
| Exhaust Duct Diameter | 150 mm diameter |
