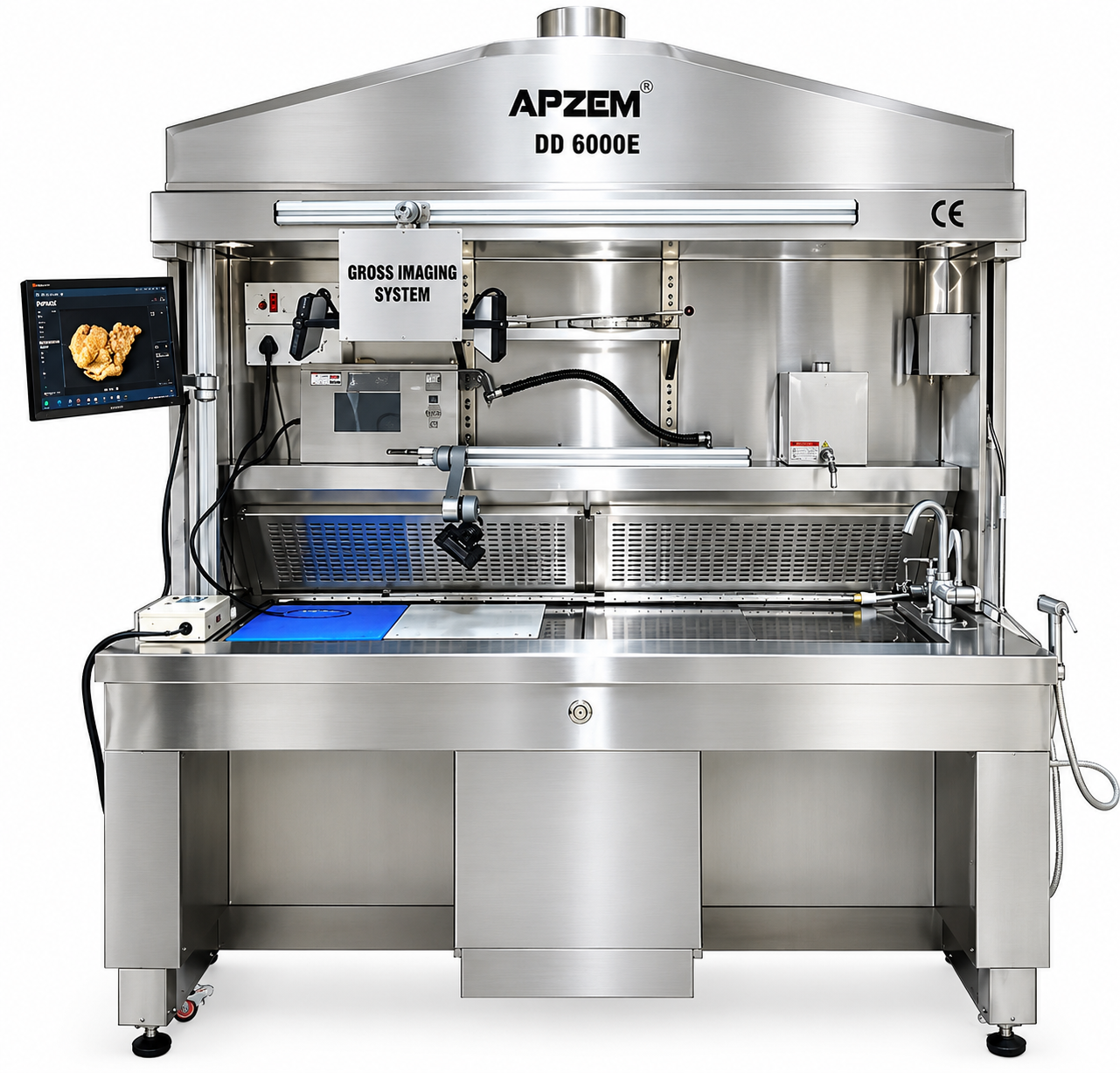

Elevating Dual Draft Grossing Station (DDE SERIES)

APZEM Elevating series Grossing Station were
designed to provide Sturdy, customizable &
affordable workstation for Elite Labs large
Labs. It comes with height adjustable feature,
Supports multiuser operation, Inbuilt Gross
Imaging System & Formalin Monitor. The Elite
Elevating series workstation comes with higher
suction capacity, ergonomically designed
& additional height adjustable features that
assists in high productivity grossing as well as
protects you from inhaling harmful Formalin
fumes.

Technical Specifications – ELEVATING DUAL
DRAFT GROSSING STATION((DDE SERIES)

Specification	Details
Model	DD6000E
MOC (Material of Construction)	SS304 (Standard) / SS316 (Optional)
Ventilation	Backdraft
Dimension (Minimum)	1850 mm (Length) × 825 mm (Width) × 2150 mm (Height)
Dimension (Maximum)	1850 mm (Length) × 825 mm (Width) × 2450 mm (Height)
Work Surface	900 mm minimum height; height can be increased up to 1200 mm using feather-touch controls
Sink	380 mm (Length) × 350 mm (Width) × 180 mm (Depth)
Filters	Water-washable polyester pre-filters, with optional custom-designed filter
Electrical	220–240 VAC, 50/60 Hz, 1 Phase; 110 V supplied on request
Plumbing – Water Connection	1/2″ industrial-grade, 1-metre flexible hose supplied for hot and cold water connection
Plumbing – Drain Connection	1 1/2″ drain hose (waste disposal)
Waste Disposal	Optional
Waste Disposal Unit	0.55 HP high-capacity waste disposal unit
Exhaust Air Capacity	1800 CMH
Perforated Working Area	1450 mm (Length) × 470 mm (Width)
Exhaust Duct Diameter	200 mm diameter
