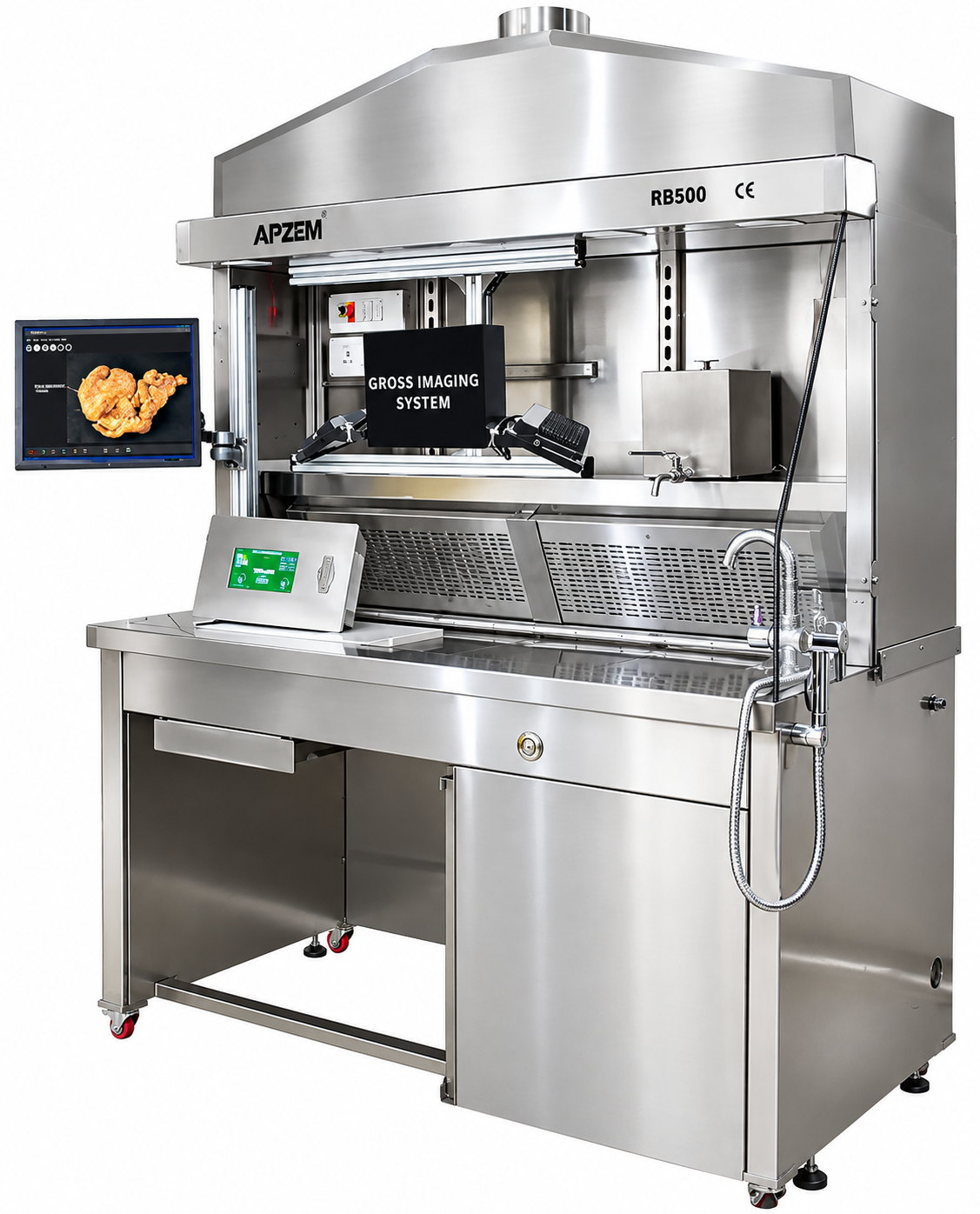

Technical Specifications – PROFESSIONAL BACKDRAFT GROSSING STATION
| Specification | Details |
|---|---|
| Model | RB500 |
| MOC (Material of Construction) | SS304 (Standard) / SS316 (Optional) |
| Ventilation | Backdraft |
| Dimension | 1515 mm (Length) × 805 mm (Width) × 2145 mm (Height) |
| Work Surface | 900 mm height (can be customized on request) |
| Sink | 380 mm (Length) × 350 mm (Width) × 180 mm (Depth) |
| Filters | Water-washable polyester pre-filters, with optional custom-designed filter |
| Electrical | 220–240 VAC, 50/60 Hz, 1 Phase; 110 V supplied on request |
| Plumbing – Water Connection | 1/2″ industrial-grade flexible hose supplied for water connection |
| Plumbing – Drain Connection | 1/2″ drain hose (waste disposal) |
| Waste Disposal | Optional |
| Waste Disposal Unit | 0.55 HP high-capacity waste disposal unit |
| Exhaust Air Capacity | 1800 CMH |
| Perforated Working Area | 1150 mm (Length) × 460 mm (Width) |
| Exhaust Duct Diameter | 200 mm diameter |
